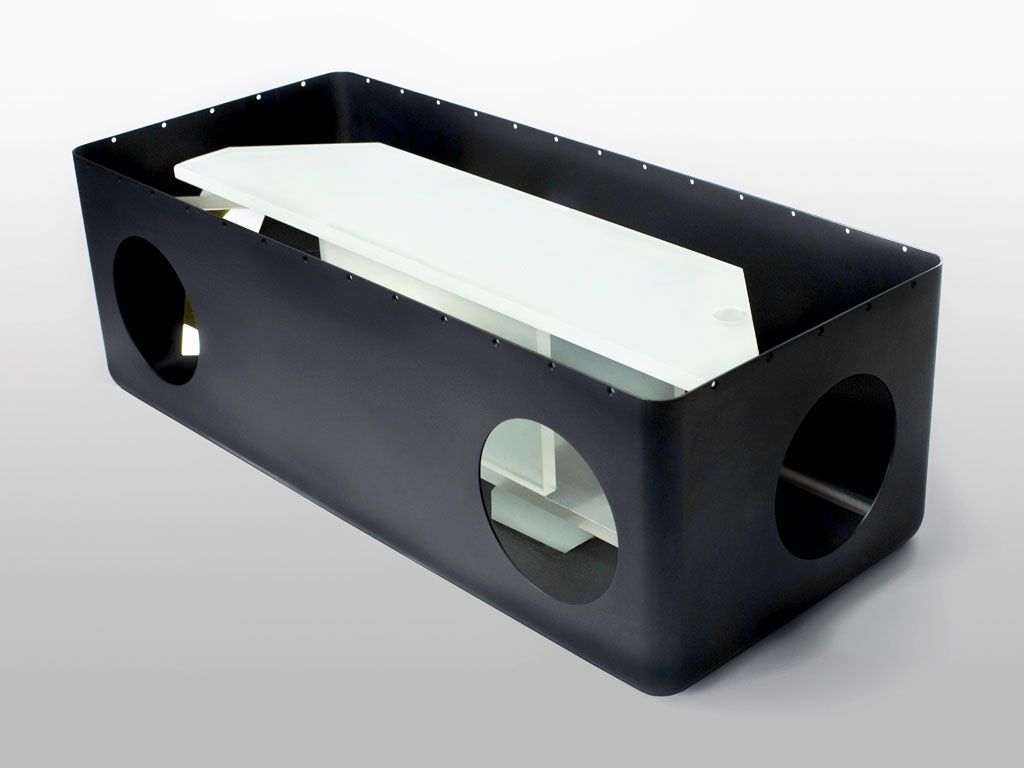

The PLX Lateral Transfer Hollow RetroreflectorTM (LTHR) is perfect for folding light 180o  and displacing it any given distance. Ideal for applications where the major beam must be aligned with two or more other optical axis.

Lthr

L-10
Lateral Transfer Hollow Retroreflectors™ (LTHR)

Cat. No. Clear Aperture
(in/mm)
Mirror Surface
Flatness(p.v.633nm)
Exiting Beam
Max Deviation
(arc.sec.)
Coating Wavelength Range (nm) Reflectance Coating Curve Diagram 3D Model
L-10-1 1.0/25 λ/10 1.0 - - -
L-10-2 1.0/25 λ/10 2.0 - - -
L-10-5 1.0/25 λ/8 5.0 - - -
L-10-10 1.0/25 λ/4 10.0 - - -
L-10-30 1.0/25 λ/2 30.0 - - -
Beam Deviation is the maximum deviation from parallelism, expressed in seconds of arc, of any single return beam from any of the 6 sub-apertures of the retroreflector, when the retroreflector is fully-illuminated.
Exiting Wavefront is the resultant maximum peak-to-valley wavefront deformation from a fully-illuminated retroreflector, where lambda = 633nm.
Certain high accuracy models may be heavier than indicated here. Check with us for actual weight.

If you don't see what you need above:

Click here for a Custom Quote, specify what your application is and our engineering staff will get back to you.
