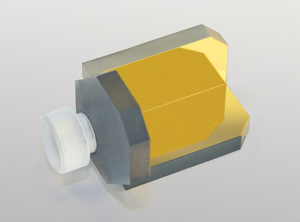

LPR-Series Low Profile Retroreflectors act as self-compensating mirrors that are totally insensitive to tilt. These retroreflectors are OEM products specifically designed for use by manufacturers of FTIR Spectrometers and systems.

Back to Product

LPR-05
Low Profile Retroreflectors (LPR)
Cat. No. Beam Diameter
(in/mm)²		 Beam Deviation
(arc.sec.)		 Exiting
Wavefront
(p.v.633nm)		 Weight
(grams)		 Coating Wavelength Range (nm) Reflectance Coating Curve Diagram 3D Model
LPR-05 0.50/12.7 1.0 λ/6 21 H - Unprotected Gold 650 - 20000 97% Coating Curve
Request a Quote For a Custom Quote Product datasheet

Beam Deviation is the maximum deviation from parallelism, expressed in seconds of arc, of any single return beam from any of the 6 sub-apertures of the retroreflector, when the retroreflector is fully-illuminated.

Exiting Wavefront is the resultant maximum peak-to-valley wavefront deformation from a fully-illuminated retroreflector, where lambda = 633nm.

Certain high accuracy models may be heavier than indicated here. Check with us for actual weight.
